Why MAPerformance should be your number one source for engine internals?
1.We offer the best deals and price match our competitors pricing!
2.We offer the very best customer service unlike any other performance retailer!
3.We have an extensive dealer network alowing us to offer just about every aftermarket part available for your car!

Connecting Rods


MAPerformance Ultimate Duty X-beam Connecting Rods
Made from 4340 billet steel for the ultimate strength
American made (forged, machined, and finished)
Shot peened/stress relieved and heat tempered
CNC'd to perfection for the ultimate in fitment
Require no modifications to the block or crank to fit
Come with 7/16" ARP fasteners as a standard feature, not the weaker 3/8" like everyone else


Manley I Beam Connecting Rods
Manley Pro Series "I" Beams are forged from 4340 aircraft quality vacuum degassed material, utilizing
the proven "Turbo Tuff" design and include 3/8" ARP 2000 cap screws.
All rods are properly shot peened after machining and 100% magnafluxed.
On all Manley connecting rods, sets are weight matched to ± 1.5 grams, big and small end bores are
final honed to a tolerance of ± .0002", critical bend and twist attributes are held to a minimum.


Pistons


Wiseco Forged 9:1 Pistons

Highlights and Features:

1. Valve pocket designs that allow maximum flow around valve, also allowing oversized valves ang high lift cams to be utilized.
2. Piston crown shapes designed to promote maximum intake charge efficiency thru scavenging mixture "cross flow" during intake and exhaust valve overlap. More fuel and air equals more horsepower!
3. Pistons designed to optimize squish or quench during compression combustion cycle event, resulting in resistance to detonation and pre-ignition. The end product is longer engine life and increased horsepower potential.
4. Complex piston skirt profiles that reduce power robbing friction, yet promote stability in bore for optimum ring seal. Wiseco has added skirt coatings to the long list of standard features on stocked sport compact pistons!
5. Precision machined ring grooves with proper orifice/accumulator volume using calculated groove root diameters and axial widths, featuring excellent surface finish and flatness providing maximum ring seal and minimizes blow-by and oil consumption.
6. World class forging facility that utilizes the latest technologies featuring complex forged shapes, advanced materials, and featured aligned grain flow technology.


Head Studs and Main Studs


ARP Head Stud Kit
All Pro Series ARP2000 studs are centerless ground, heat treated prior to thread rolling and machining,
and are nominally rated at 220,000 psi. These fasteners deliver a 35% increase in tensile strength over
the OEM torque-to-yield (TTY) head bolts.


ARP Main Stud Kit
This ARP2000 main stud kit includes a set of ten, M10 ARP2000 main studs, a set of ten, M8 ARP2000
main studs, twenty 8740 chrome moly steel 12 pt nuts and a 1/2 oz. pack of ARP Ultra-Torque fastener
assembly lubricant. All Pro Series ARP2000 studs are centerless ground, heat treated prior to thread
rolling and machining, and are nominally rated at 220,000 psi. These fasteners deliver a 50% increase
in tensile strength over the OEM main bolts.


Cosworth Head Stud Kit 11mm
Essential for high performance engine builds, heavy duty head studs reduce cylinder head movement
in high boost or high compression engines optimizing cylinder head to block sealing. Cosworth Ultra
High Performance Head Studs are manufactured from H11 tool steel with 260,000psi tensile strength
and come complete with nuts and washers. Manufactured with hex broach end for ease of installation.
Additionally, genuine Cosworth head studs utilize a base seating feature to evenly distribute maximum
load on the stud and not the threads. This feature is typically found only in high level race engines.


Camshafts

GSC Power-Division

GSC Power-Division was started in 2004 when a need for high performance camshafts for Japanese turbo cars
had little worth while offerings. Using cutting edge design software and quality chill cast and ductile
iron billets ground on one of the most advanced CNC grinding equipment in the world has given GSC the
chance to become a world wide supplier for some of the very best performance camshafts in our markets.

Brian Crower
Brian Crower, Inc. was created to fill the need for high quality, high performance, late model internal
engine components, in stock, at very affordable prices. Stroker kits for all popular Sport Compact
applications and camshafts and valve train to match. Complete packages designed to work together to
deliver more horsepower and torque as well as greater reliability.

Cosworth

Cosworth leverages its successful motor sport pedigree, performance technology expertise and globally
recognized brand to provide high quality engineered solutions for a growing customer base across diverse industries.
The company is home to leading edge engineering, world class manufacturing and comprehensive test facilities.
Our business is geared to deliver smart solutions and exceptional service to customers around the world.

Please contact us for unbeatable pricing on these products, also keep in mind we will match or beat any competitors pricing on so called "package deals"!

: Send us a PM|||||: DrewAtMAP|||||: 1-888-MAPERFORMANCE x 100|||||: Dreget@MAPerformance.com

|||||||||||||||

[Maperformance]

Crankshafts and Stroker Kits


Cosworth Stroker Crank 2.2L


GSC Power-Division 4340 Billet Crankshaft

Cosworth 2.2L Stroker Kit

Increased displacement means increased performance and the Cosworth 2.2L EVO X stroker kit is the perfect way to add power and torque to your EVO. Each kit includes select, matched motorsport grade components ensuring maximum reliable performance. Features billet steel, fully counter weighted crankshaft for smooth, high revving operation along with Cosworth forged steel connecting rods and forged pistons. The Cosworth 4B11T 2.2L stroker kit combines the perfect bore to stroke ratio, yielding potentially big gains in torque while still allowing the engine to rotate and produce power in the higher rpm range.

* Cosworth Forged Pistons (86mm)
* Cosworth Fully Counterweighted Billet Crankshaft (94mm)
* Cosworth Forged Connecting Rods
* Cosworth Piston Rings



ERL Stroker Kit for 4B11

The ERL 4B11 Stroker Kit is an economical way to obtain a large displacement Mitsubishi 4B11.
The Stroker kit can be purchased with stock 86.5mm pistons producing 2.3L of displacement or
with oversized 90mm pistons producing 2.5L of displacement. The 4B11 has a stock stroke of only
86mm, ERL increases this by 11mm to 97mm. The ERL 4B11 Stroker kit comes with custom Wiseco
pistons, forged crankshaft, K1 rods and ACL race bearings. Sleeved Block is necessary if using
90mm pistons.

Kit Options:
W1 Kit Includes:

* Wiseco Pistons
o 86.5mm Bore
o 97mm Stroke
o C.R. 9.5:1
o 2.3L Displacement
* K1 Connecting Rods
* Forged Crankshaft
* For use with stock sleeved block

W2 Kit Includes:

* Wiseco Pistons
o 90.0mm Bore
o 97mm Stroke
o C.R. 9.5:1
o 2.5L Displacement
* K1 Connecting Rods
* Forged Crankshaft
* For use with aftermarket sleeved blocks only!



M7 Stroker Kit for 4B11

The M7 Super Stroker Kit provides more power and torque capabilities of your engine. The kit includes
M7 Crankshaft, M7 Piston Kit and M7 Super Connecting rods. The lightweight, high strength, and rate
of balance of those parts will definitely improve your engine overall response. You can use broadly
in various fields such as street, circuit running or drag race.


Headgaskets

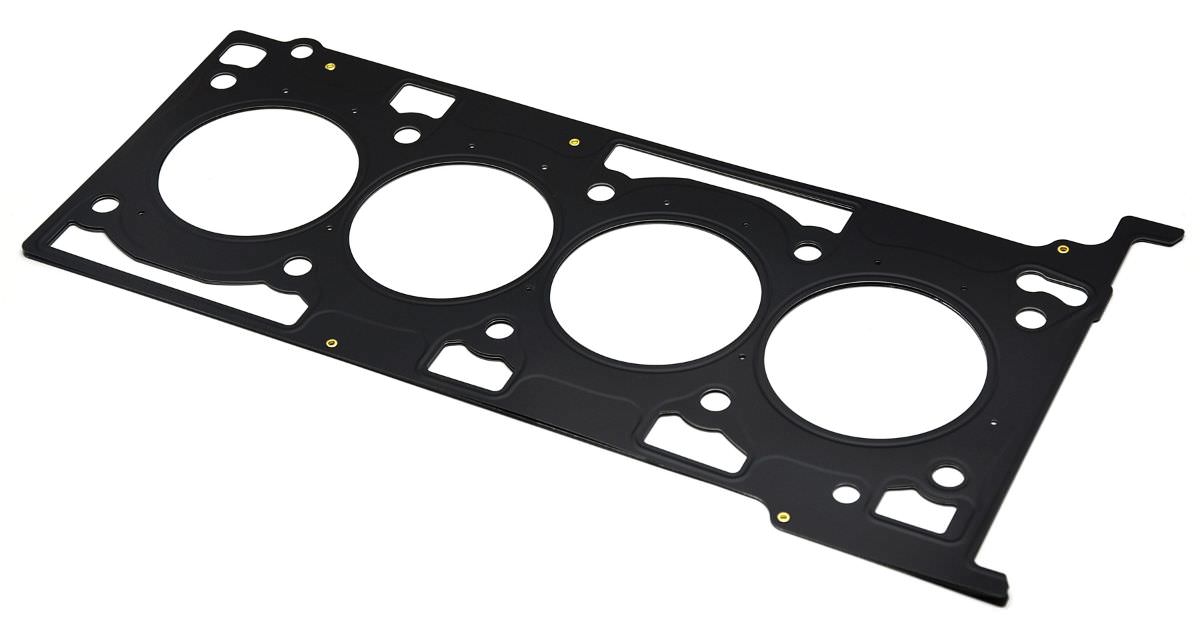

Cosworth Head Gasket (Evo X)

Cosworth High Performance Multi layer steel head gaskets are designed to seal in power under the
most demanding conditions. Each gasket is carefully engineered with the following features:
• Individual die cut layers of stainless steel with superior consistency compared to laser cut gaskets.
• Pre-coated stainless steel with a 0.25 micron layer of nitrile rubber ensures consistent distribution
of coating with no high or low areas.
• Manufacturing dimensional tolerance of 0.002”.
• Die cut manufacturing process ensures smooth edges, unlike laser cut gaskets.
• Cosworth gaskets feature a “stopper” sealing layer for additional torque around each cylinder. The
width of sealing area is specific for each application thereby providing ultimate sealing properties.



Brian Crower Head Gasket (Mitsubishi Evo X)

BC gaskets are made in Japan and deliver the ultimate sealing capability even at extreme boost pressures.
Individual die cut layers of stainless steel with superior consistency compared to other leading gaskets.
These inferior brands are constructed with too high profile of beads which is prone to fatigue, losing the
spring effect in a relatively short period of time and consistency of sealing pressure, resulting in leakage.
BC gaskets are pre-coated stainless steel with a 0.2 micron consistent layer of Nitrile rubber that completely
fills the cylinder head surface. Even a newly resurfaced cylinder head and/or block has a surface finish or
roughness between 10 to15 microns and this Nitrile rubber completely seals the surfaces at operating engine
temperatures, unlike the FKM type which is not suitable for filling the surface roughness because the material
has too high of heat resistance. Basically the FKM does not melt to fill into the surface roughness
providing the proper seal.

Please contact us for unbeatable pricing on these products, also keep in mind we will match or beat any competitors pricing on so called "package deals"!

: Send us a PM|||||: DrewAtMAP|||||: 1-888-MAPERFORMANCE x 100|||||: Dreget@MAPerformance.com

|||||||||||||||
